Why Laser Engraving Jigs Matter: Getting More Consistent Results With the xTool F1 and F2
Share
If you've spent any amount of time with an xTool F1 or F2, you've probably discovered something pretty quickly:
Putting the laser on the material is the easy part. Getting the material in exactly the same place every time is where things can get annoying.
That's where a good jig comes in.
I've spent a lot of time making custom products, testing different setups, and figuring out how to make the engraving process more repeatable. One of the biggest lessons I've learned is that you don't want to spend your time measuring and repositioning the same blank over and over again.
You want to make the setup once and then get to work.
That's what a jig is designed to help you do.
What Is a Laser Engraving Jig?
A jig is a positioning tool that helps hold or locate your material in a consistent position while you're engraving it.
Think of it as a guide for your laser and your material.
Instead of placing an item on the bed, eyeballing where it needs to go, framing it, adjusting it, and doing that all over again for the next piece, a jig gives you a repeatable place to put the item.
Put the blank in the jig.
Engrave it.
Take it out.
Put the next one in the same spot.
Repeat.
It sounds simple because it is. But that simplicity can save a surprising amount of time.
xTool itself uses positioning pieces for batch processing on the F1, specifically so identical materials can be placed in the same position repeatedly.
Why Do You Need a Jig If the xTool Already Has a Camera?
This is one of the questions I hear a lot.
The camera and positioning features on the F1 and F2 are useful. The F2, in particular, has a high-resolution camera and batch-processing capabilities designed to make positioning easier.
But there's a difference between being able to position something and having a repeatable physical setup.
If you're engraving one item, you may not need a jig at all.
If you're engraving 25, 50, or 100 of the same item, that's when a jig starts to make a lot more sense.
The camera can help you figure out where the item is.
The jig helps you put the item in the same place every time.
Those two things can work together really well.
The Biggest Benefit: Consistency
If you're making products to sell, consistency matters.
Let's say you're engraving 30 pieces for a customer.
You don't want the first one centered slightly to the left, the second one slightly to the right, and the last one sitting at a completely different angle.
Even if each individual engraving looks good, the finished batch won't look like a professional set.
A jig gives you a physical reference point.
Once you've established where the material belongs, you can keep putting each piece in that same position.
That means:
- More consistent placement
- Less measuring
- Less repositioning
- Fewer setup steps
- More repeatable results
- Less time spent fighting with your machine
And when you're doing production work, all those little bits of saved time add up.
Jigs Are Especially Useful for Batch Engraving
This is probably the biggest reason I recommend using them.
If you're only engraving one piece, spending extra time setting up a jig may not make sense.
But if you're making the same product repeatedly, the math changes.
Imagine you need to engrave 50 identical pieces.
Without a jig, you may have to repeatedly:
- Place the blank.
- Adjust the position.
- Frame the design.
- Check the alignment.
- Engrave.
- Remove the blank.
- Repeat everything.
With a properly designed jig, the process becomes much more straightforward:
- Place the blank in the jig.
- Engrave.
- Remove it.
- Put the next blank in.
- Repeat.
xTool's own F1 documentation demonstrates this same basic concept with its positioning piece for batch processing.
The machine is doing the engraving.
The jig is taking some of the positioning work off your plate.
A Jig Can Save More Than Time
Time is an obvious benefit, but it isn't the only one.
Think about what happens when you repeatedly reposition something by hand.
Even if you're really good at it, there will be small differences.
Maybe you're off by a millimeter.
Maybe the item is rotated slightly.
Maybe you thought it was centered, but it wasn't.
One small error isn't necessarily a disaster.
When you're making a batch of products for a customer, though, those inconsistencies can become much more noticeable.
A jig gives you a physical reference that doesn't rely entirely on your eyes.
That's important when you're trying to make ten pieces look like ten pieces from the same product line rather than ten cousins who vaguely resemble each other.
Jigs Are Not Just for Beginners
You don't need to be new to laser engraving to benefit from a jig.
Actually, I'd argue that jigs become more useful as you get more serious about production.
When you're learning, you might be perfectly happy positioning every item manually.
Once you're selling products, fulfilling orders, or making large batches, efficiency becomes much more important.
You start looking at the process differently.
Instead of asking:
"How do I engrave this?"
You're asking:
"How do I engrave 50 of these without losing my mind?"
That's where jigs become a production tool instead of just an accessory.
Choosing the Right Jig for Your xTool F1 or F2
Not every jig is going to work for every project.
The right jig depends on what you're engraving.
Before choosing one, consider:
What Are You Engraving?
A jig designed for one shape or size isn't necessarily going to work for another.
Think about the actual blank you're using and how it needs to sit in the machine.
How Many Are You Making?
If you're doing one-off projects, a jig may not be necessary.
If you're repeatedly making the same product, a jig can become one of the most useful tools in your setup.
Does Orientation Matter?
If the design needs to be centered or aligned in a particular direction, having a consistent reference point becomes even more important.
Do You Need to Repeat the Same Job?
This is probably the biggest question.
If the answer is yes, I would seriously consider a jig.
F1 and F2: Why the Same Basic Idea Still Matters
The xTool F2 adds some significant positioning and batch-processing capabilities compared with the F1, including a built-in camera, autofocus, and AI-assisted batch processing.
That doesn't make physical jigs obsolete.
If anything, the more you get into production, the more useful it can be to combine the machine's built-in positioning tools with a repeatable physical setup.
The goal isn't to replace the technology that's already in the machine.
The goal is to make your entire workflow easier.
The Best Jig Is One That Solves a Specific Problem
I don't think every laser engraver needs a giant collection of jigs sitting next to their machine.
That's another way to end up with a pile of tools that sounded like a good idea at the time.
Instead, look at the products you're actually making.
If you repeatedly engrave a particular item, ask yourself:
Where am I losing time?
If the answer is positioning, alignment, or repeatedly getting the same item into the same place, that's probably a good candidate for a jig.
A good jig should solve a problem.
It shouldn't create another one.
Why We Make Jigs
A lot of the jigs I make come from the same place as the rest of our custom work: I run into a problem and start figuring out a better way to solve it.
If I'm making the same thing repeatedly, I don't want to keep measuring it.
If I need something to sit in a particular position, I want a repeatable way to put it there.
If I'm making something for another laser engraver, I want the tool to be useful in an actual production environment, not just look good sitting next to the machine.

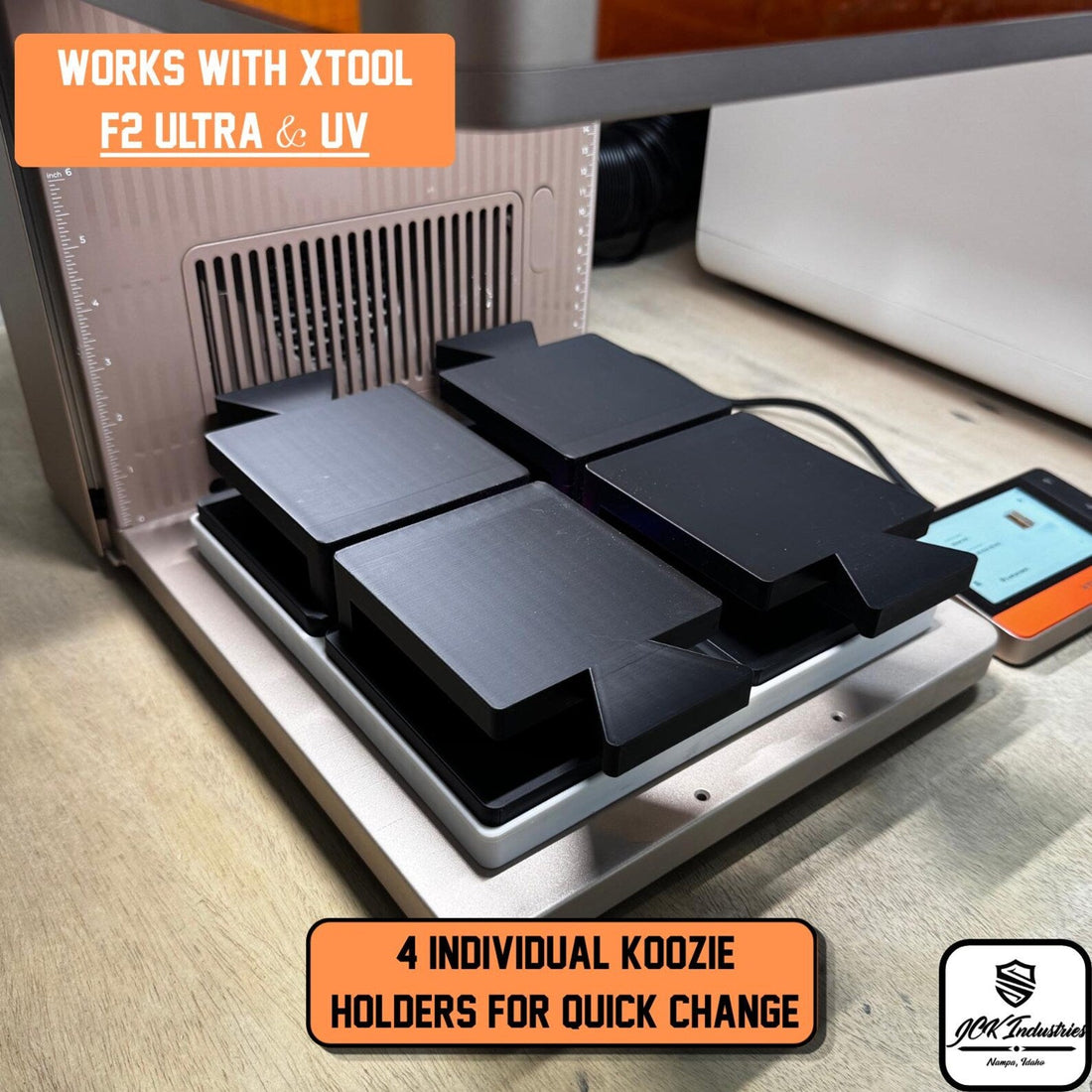

That's the thinking behind the jigs and tools we make for the xTool F1 and F2.
They're meant to make the engraving process easier, more repeatable, and less frustrating.
Want to See How They Work?
This is one of those things that's much easier to understand when you can actually see it.
I post how-to videos, demonstrations, and examples on our Facebook page where you can see different jigs in use and get a better idea of how they work with the F1 and F2.
If you're trying to figure out how to use a particular jig, looking for setup ideas, or just want to see what I'm working on, that's the best place to find the videos.
Follow JCK Industries on Facebook for how-to videos and demonstrations.
I also add new jig and tool options to the website as I develop them.
A Few Things I've Learned About Using Jigs
After working with these machines for a while, there are a few things I keep coming back to.
Don't Overcomplicate Your Setup
If a jig takes longer to set up than it saves, it's probably not doing its job.
The best jigs make the process simpler.
Test Before Running a Big Batch
Before you load up 50 blanks, run a test.
Make sure the material sits correctly, the engraving is positioned where you want it, and your settings are appropriate for the material.
It is much cheaper to discover a problem on piece number one than piece number fifty.
Pay Attention to Your Blanks
A jig can only be as consistent as the materials you're putting into it.
If your blanks vary significantly in size or shape, you may still have positioning issues.
Build Your Workflow Around What You Actually Make
Don't buy tools just because somebody else has them.
Look at the products you're making and figure out where you're spending the most time.
Then solve that problem.
That's how I approach jigs in the first place.
Do You Need a Jig for Every Laser Engraving Project?
No.
If you're engraving a one-off piece, you may not need one.
If you're experimenting with a new material or design, manual positioning may make more sense while you're figuring everything out.
Jigs really start earning their keep when you're repeating the same process.
The more pieces you make, the more valuable consistency becomes.
Frequently Asked Questions About Laser Engraving Jigs
What does a laser engraving jig do?
A laser engraving jig helps position and hold materials in a repeatable location so you can engrave multiple pieces more consistently.
Do I need a jig for an xTool F1?
Not necessarily. The F1 can be used without a jig, particularly for one-off projects. A jig becomes more useful when you're repeatedly engraving the same type of item and want consistent positioning.
Do I need a jig for an xTool F2?
Not for every project. The F2 has built-in camera and batch-processing features that assist with positioning, but a physical jig can still provide a consistent reference point for repeated production work.
Are laser engraving jigs worth it?
If you're regularly engraving multiple identical pieces, a jig can save setup time and help improve consistency. For occasional one-off engraving, you may not need one.
Can a jig improve engraving consistency?
A properly designed jig can help keep identical blanks in the same position from one engraving to the next. That makes it easier to repeat the same placement across a batch.
Are jigs only useful for batch engraving?
No. A jig can also be useful when a particular item needs to be positioned at a precise location or orientation, even if you're only making a smaller number of pieces.
How do I know which jig I need?
Start with the product you're trying to engrave. Look at its size, shape, orientation, and how many you typically make. The right jig should solve a specific positioning or production problem.
Where can I see examples of JCK jigs in use?
I post how-to videos, demonstrations, and other laser engraving content on the JCK Industries Facebook page.
Follow JCK Industries on Facebook to see the latest videos and examples.
Make the Machine Work for You
Laser engravers are incredibly capable machines, but the machine itself is only one part of a good production setup.
Your workflow matters too.
If you're repeatedly measuring the same blank, fighting with positioning, or wondering why the twentieth piece isn't sitting exactly where the first one did, it may be time to look at your setup.
A good jig won't magically make every engraving perfect. You still need the right material, settings, focus, artwork, and machine setup.
What it can do is remove one more variable from the process.
And when you're making products to sell, fewer variables usually means a better workflow.
That's really why I make these tools.
If there's something you're engraving over and over again and you're thinking, "There has to be a better way to do this," there probably is.
Take a look at the jigs and tools I've developed for the xTool F1 and F2, and check out our Facebook page for videos showing how I use them.
